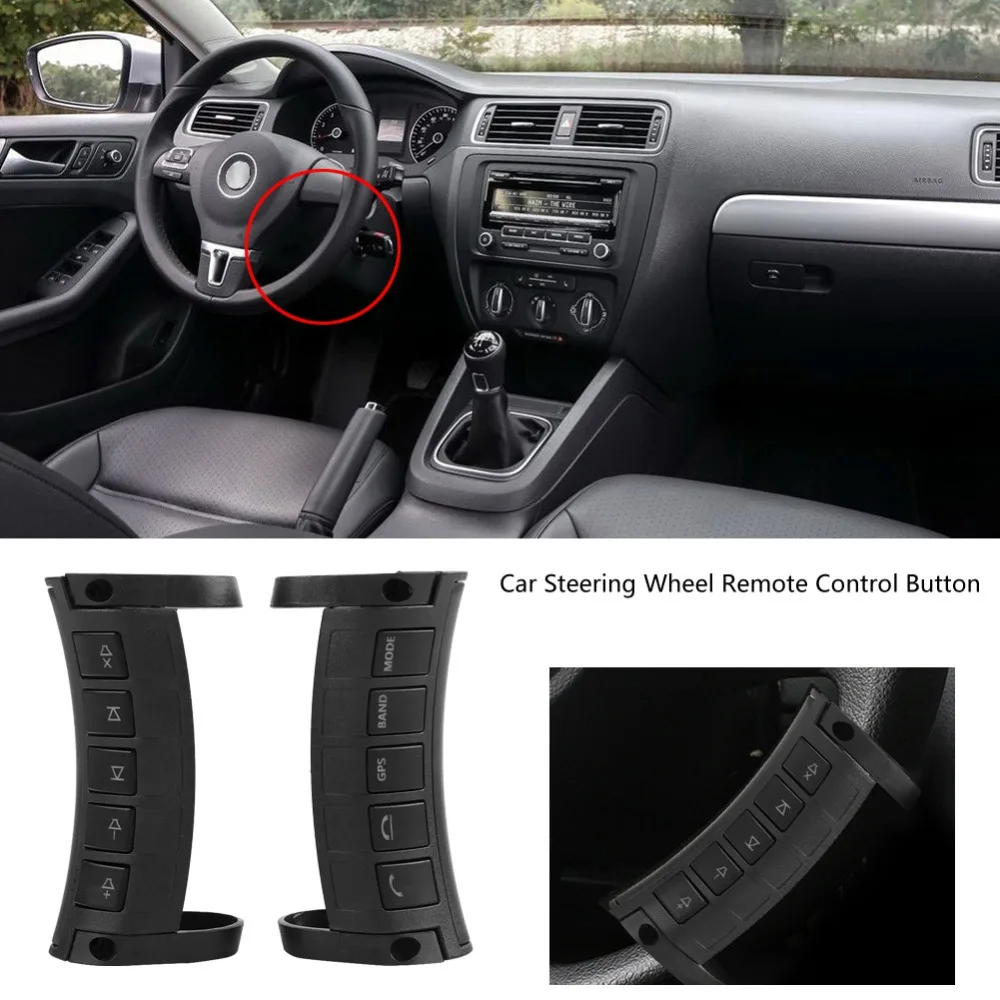

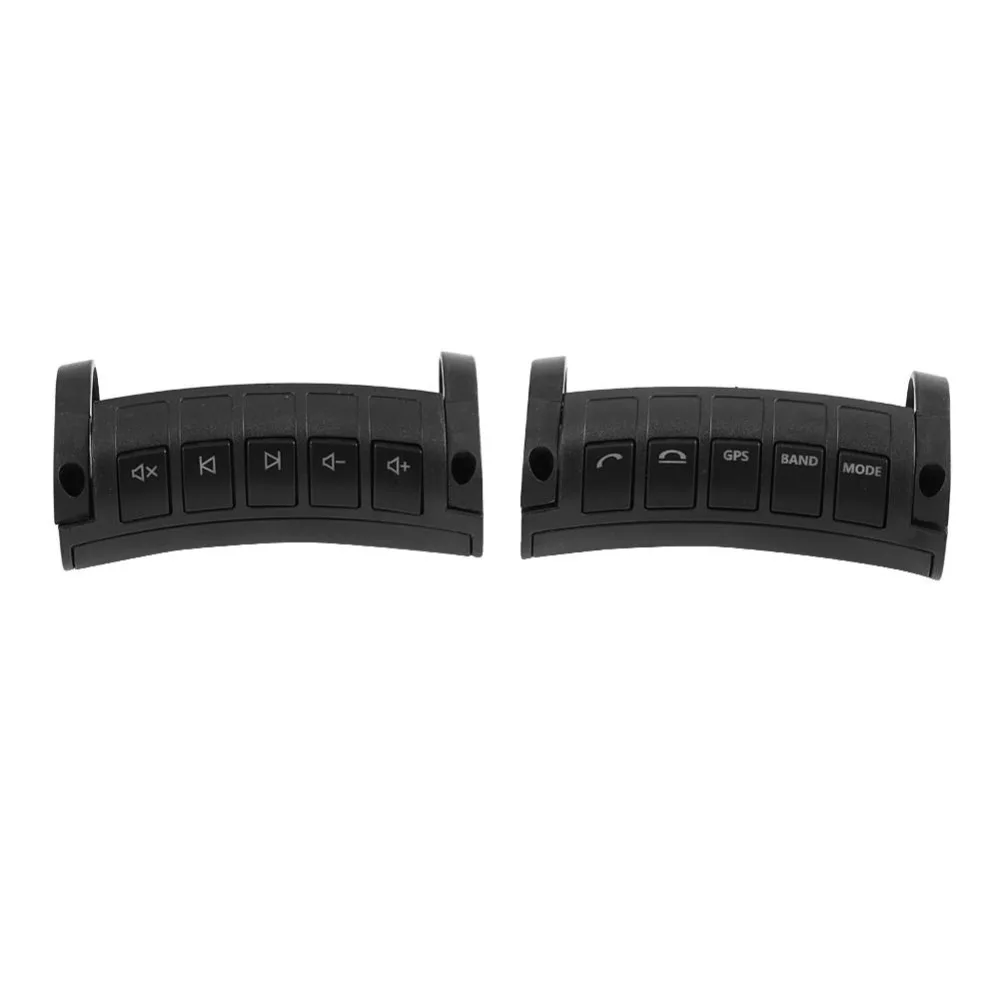

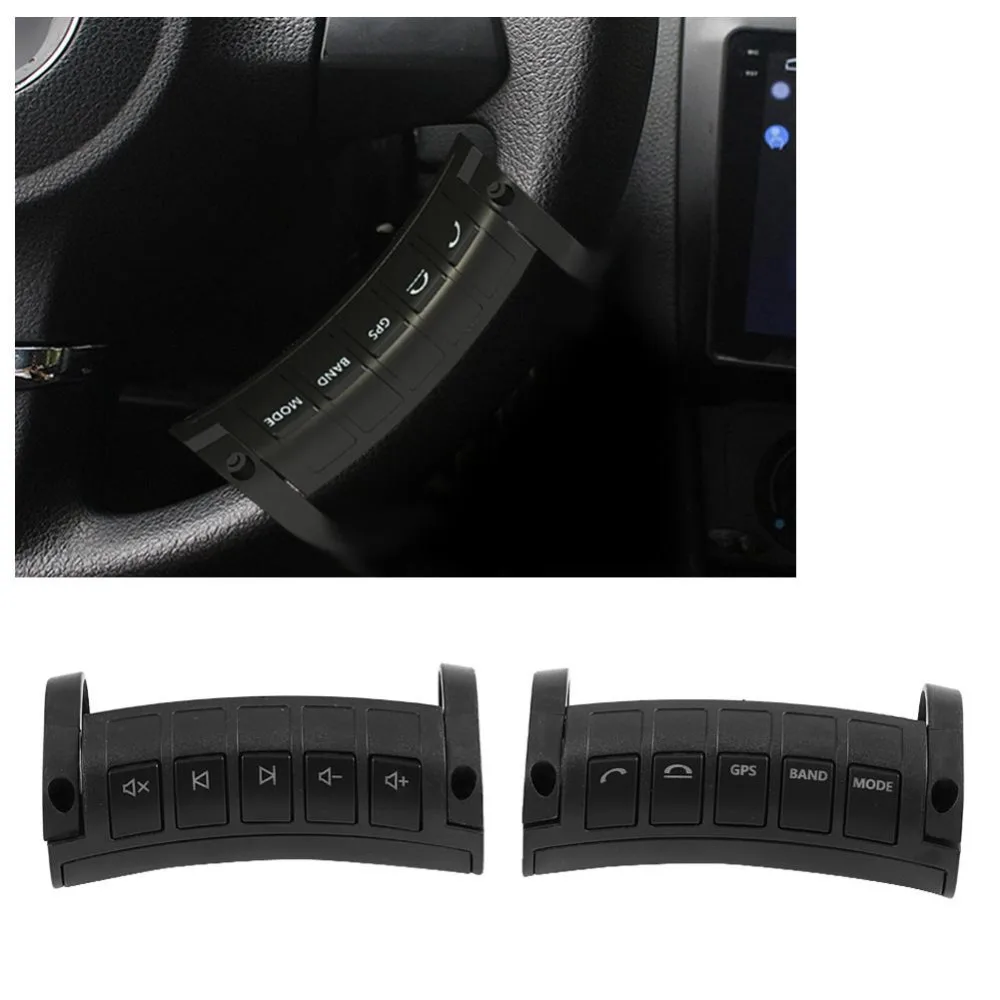

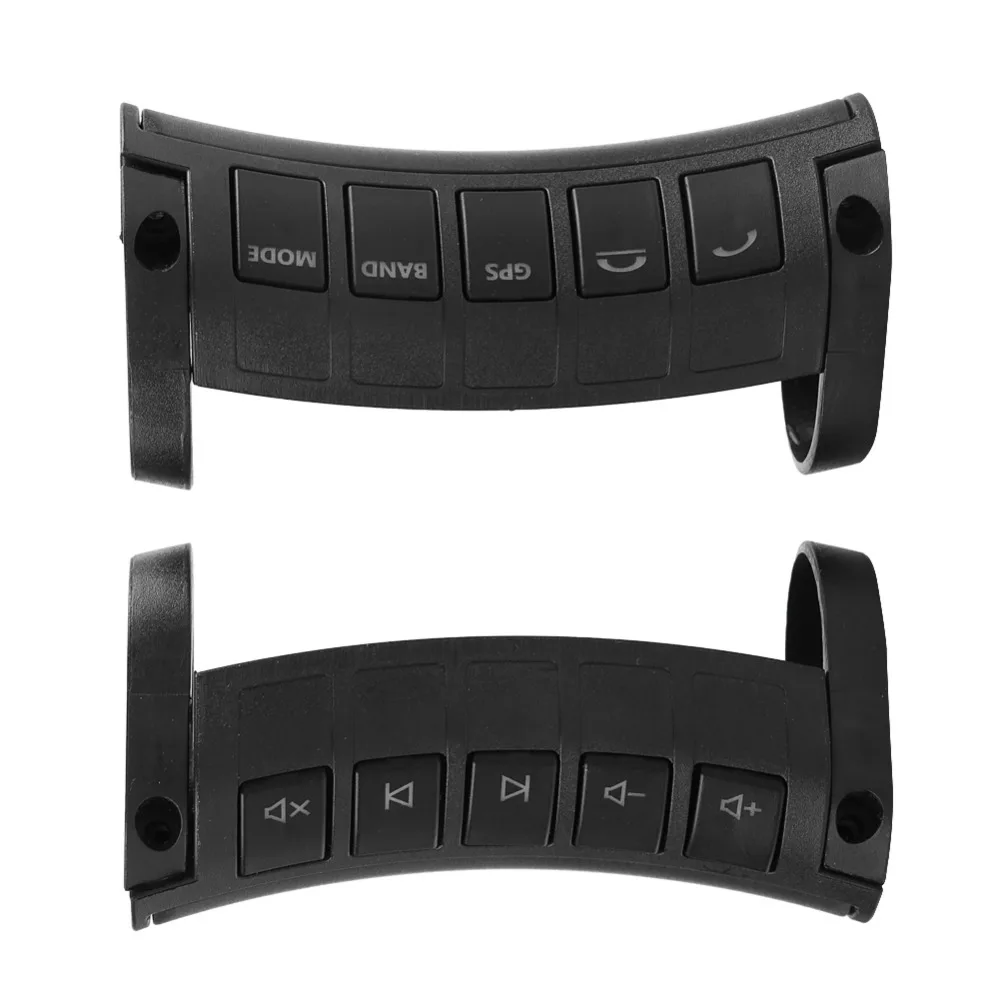

12V Multi-function Car Wireless Steering Wheel Remote Control DVD Navigation Button Universal Car Electronics Accessories

Features:

  1. Being flexibly installed along the steering wheel as you like, this controller is easy to use and helpful to keep safety for your driving.
  2. Built in battery powered, ultra low power, batteries can use from one year to two years.
  3. Can support 5 buttons and 10 buttons two choices, to meet the common operations of the car.
  4. Super touch design, small space occupation and side button, will not cause the wrong operation by steering the wheel.
  5. Integrated arc design, perfect compatible with a variety of car steering wheel, does not affect the steering wheel cover.
  6. Easy installation and removal.No need to remove the original steering wheel control to make it work.
  7. Applicable to most of the market with direction control function of DVD navigation.


Specification:
Color: Black
Material: ABS
Power Line Voltage: 12V
Quantity: 1pc, 2pcs(Optional)
Direction Control Line Voltage: 3-5V
Package Weight: Approx. 92-125g/3.2-4.4oz

Installation Method:
1. Remove the DVD navigation.
2. Navigation host, in the tail line to find the steering wheel multi-function control line, ACC line, ground wire, specific line function, please consult the navigator manufacturers.
3. The receiver has a corresponding bit line marking stickers ACC for automotive ignition wire, GND for the ground line, KEY1 and KEY2 for the side control line, please connect the corresponding line. If the navigation host has only one direction control line, please connect


the receiving box KEY1 and KEY2 to the navigation at the same time.

4. Enter the DVD navigation settings, find the multi-function button learning (steering wheel settings), press and hold the button to learn the corresponding function (see DVD navigation instructions for specific operations)
5. Enter Android navigation or DVD navigation (steering wheel settings, or steering wheel learning interface) volume -, volume +, mute, previous song, next song 5 buttons together for 10 seconds to pair, after successful pairing, direcion control receiver from the plug there can see a red light on, which proves that the pairing has been successful. (You can see the red light in the small hole of the direcion control receiver at night.) The button operation on answering the phone and hanging the phone is the same as the before. Then enter Android navigation or DVD navigation (steering wheel settings, or steering wheel learning interface) for each button learning.
6. Note: each button can also be customized for learning.

Package list:
2 * Remote Control

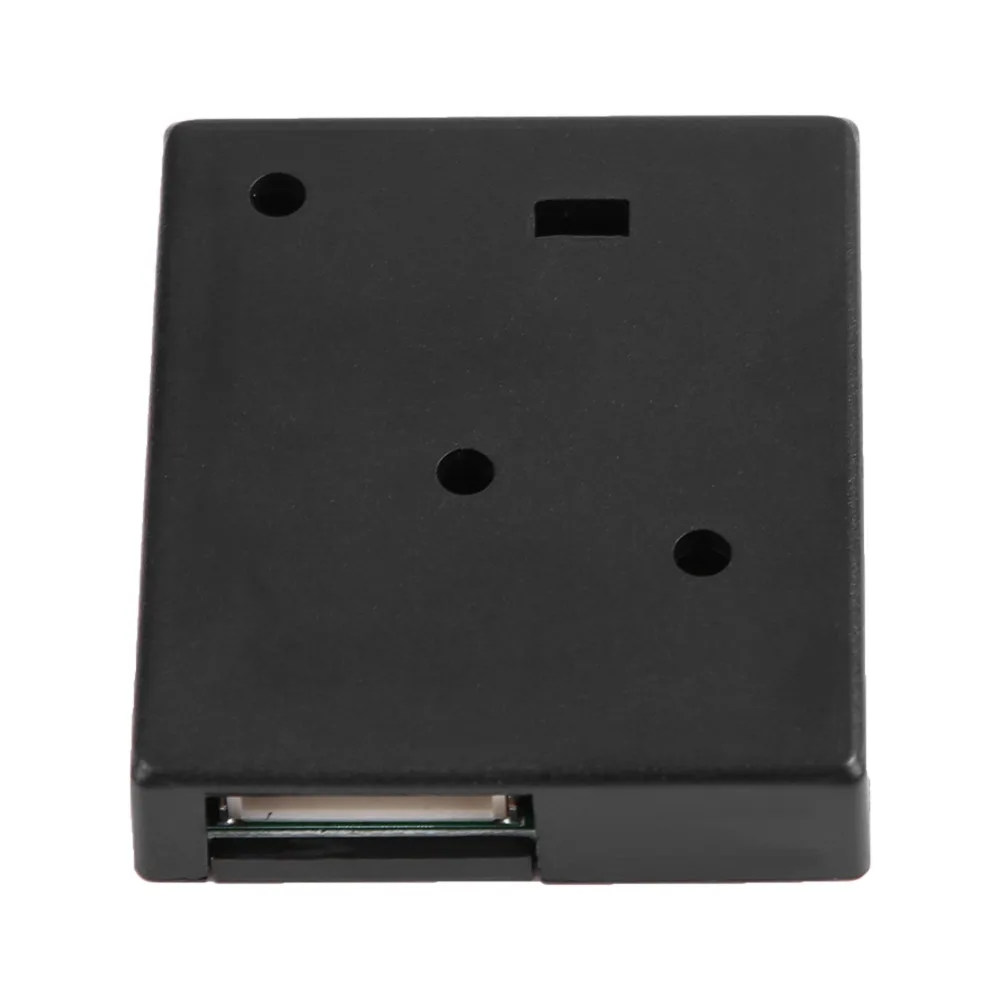

1 * Receiver Box

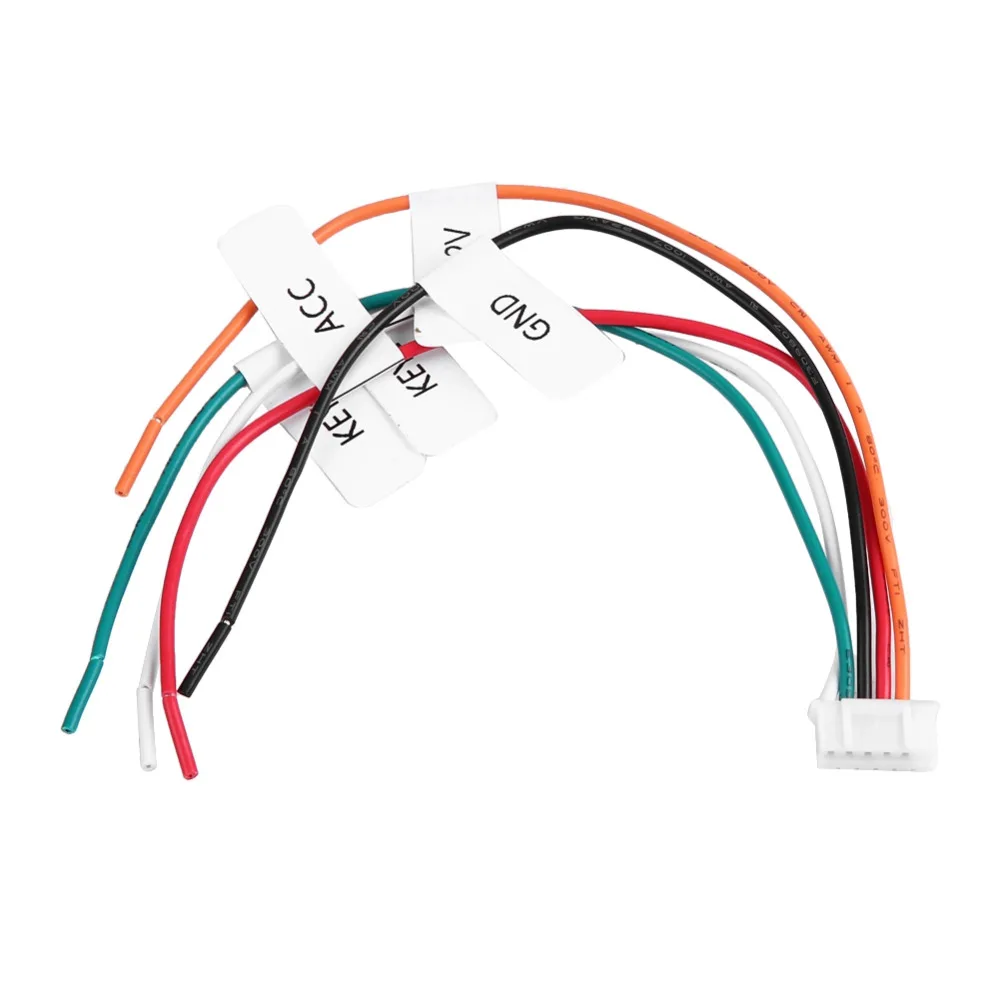

1 * Cable
4 * Screws
1 * User Manual

Notes:
1. Batteries are not included in the parcel(AAA battery).
2. The receiving box should straighten the antenna as close as possible to the steering wheel, and try to leave the navigation position close to the steering wheel position, which can greatly improve the receiving effect.
3. When operating the button, press and hold the button for more than 0.5 seconds to improve the button recognition ability.
4. Do not connect the positive and negative poles of the receiving box power supply. The receiving port should be treated with menopause to avoid damage to the equipment.


5. Need to be installed by professional!
