Retro Motorcycle Model Iron Arts Creative Gift Photo Props Motor Figurine Metal Handicraft Home Decoration Bar Cafe Decor

Retro Motorcycle Model Iron Arts Creative Gift Photo Props Motor Figurine Metal Handicraft Home Decoration Bar Cafe Decor
  • Продавецciscomatt.com
  • Список ценUS $63.30piece
  • Продажная ценаUS $63.30piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,2 (680)

Oписание продукта

DIY Set PIX PIX4 Flight Control ZD850 Frame Kit M8N GPS Remote Control Radio Telemetry ESC Motor Props RC 6-Axle Airplane





Note :

  Product is DIY Version, Unassembled Kit and NO Manual, Please take it into account before ordering.

Our technicist will help client to weld the some wiring for ESC and we will test all electronic parts before shipment.

If any Technical questions, Please message us but do not open dispute or leave negative feedback.



Note: The item do not include Battery!



Product Listing :

1.ZD850 Full Carbon Fiber Frame Kit with Unflodable Landing Gear Foldable Arm *1

2.

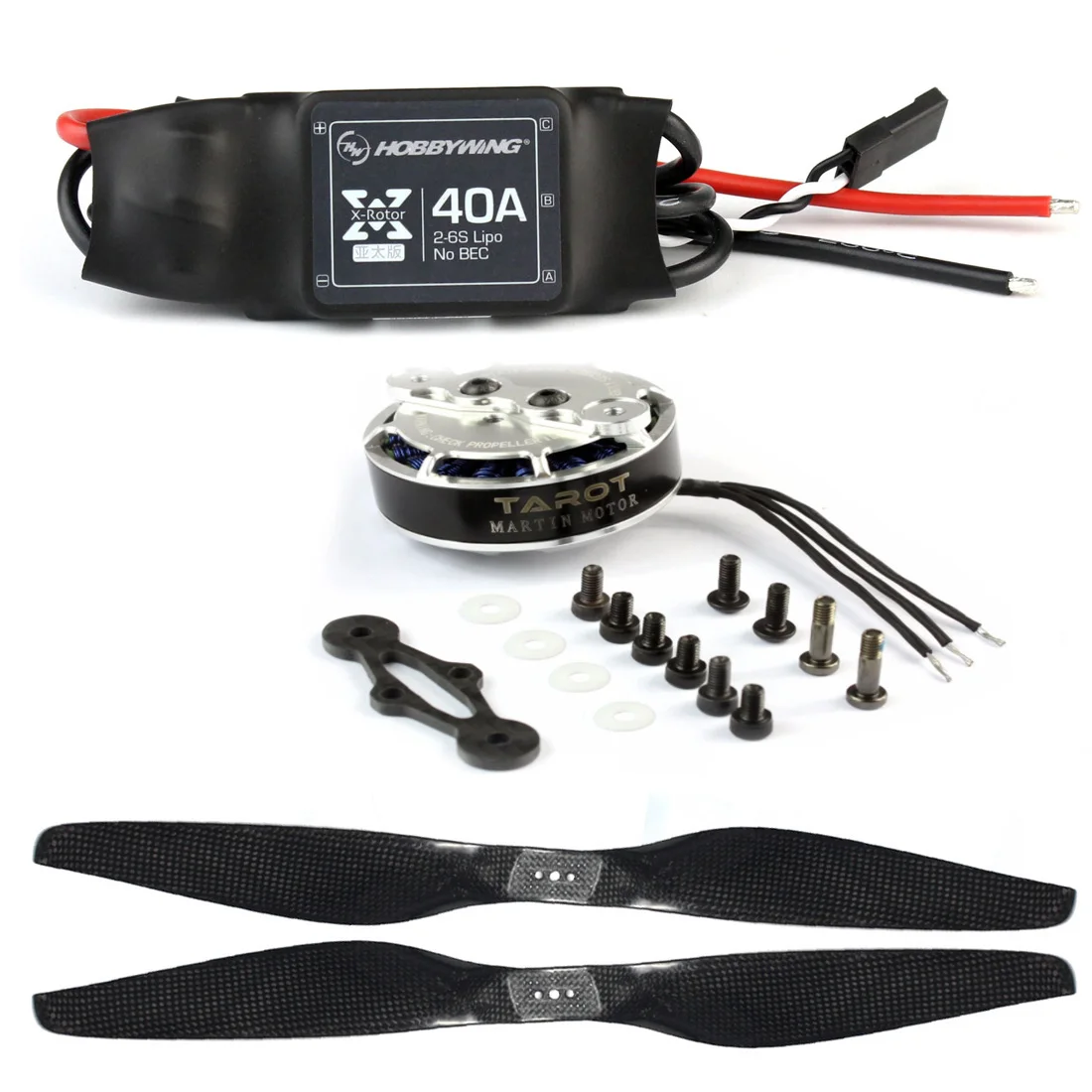

Tarot 4008 Martin RC Brushess Motor TL2955 *6

3.Hobbywing XRotor 2-6S Lipo 40A Brushless ESC *6

4.5 in 1 Shock Absorber Damping Plate Integrated Power Module *1

5.Three-hole High Quality Carbon Fiber1555  CW CCW Propellers *3 Pairs

6.Pixhawk PX4 Autopilot PIX 2.4.8 Flight Controller 32 Bit ARM *1

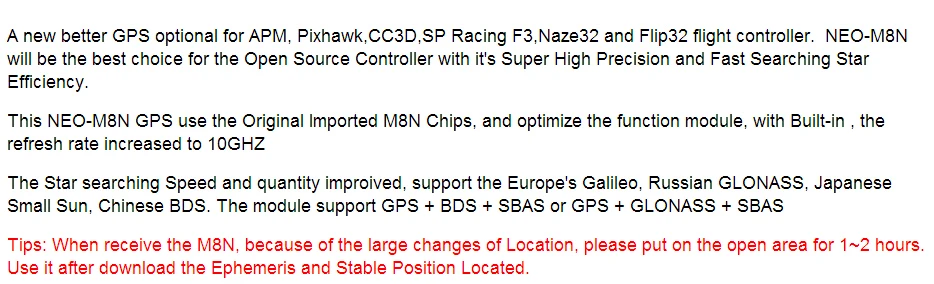

7.Mini M8N GPS Module NEO-M8N GPS *1

8. CNC GPS Anti-interference Antenna Mount Holder Stent Case *1

9.Wireless WIFI Radio Telemetry Replace Traditional 3DR Telemetry for Mobile Phone Computer *1

10. RadioLink AT10 II 2.4Ghz 10CH  with R12DS Receiver RC Transmitter *1

11.1m Black and Red 16AWG Silicon Wire Connecting Wire *3

12. 4X Hook & Loop Fastening Tape *1

13.XT60 Male with 14AWG Wire 10cm *1



-------PIXHAWK PIX PIX4 Flight Control --------



Hardware parameters:
 processor
1.32 bit 2M flash memory STM32F427 Cortex M4 with hardware floating point processing unit
2. Frequency: 168MHZ, 256K RAM
3.32 bit STM32F103 backup coprocessor
 sensor
1.L3GD20 3-axis digital 16-bit gyroscope
2. LSM303D 3-axis 14-bit acceleration / magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 high-precision barometer
 interface
1.5 UART 1 compatible high voltage, 2 with hardware flow control
2.2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible input and output
5.PPM signal input
6.RSSI (PWM or voltage) input
7.I2C
8.SPI
9.3.3 and 6.6VADC inputs
10. External MICRO USB interface

------ZD850 Frame ---------

parameter:
20mm carbon tube arm
16mm + 10mm carbon tube tripod
3.0 mm botton center plate
1.5mm upper center plate
Aluminum alloy folding pieces
Nylon mixed carbon pipe clamp
Plastic tripod connection (force 50kg)
The net weight of frame kit  is about 1210g



----------Radiolink 2.4G 10CH Remote Control ---------
